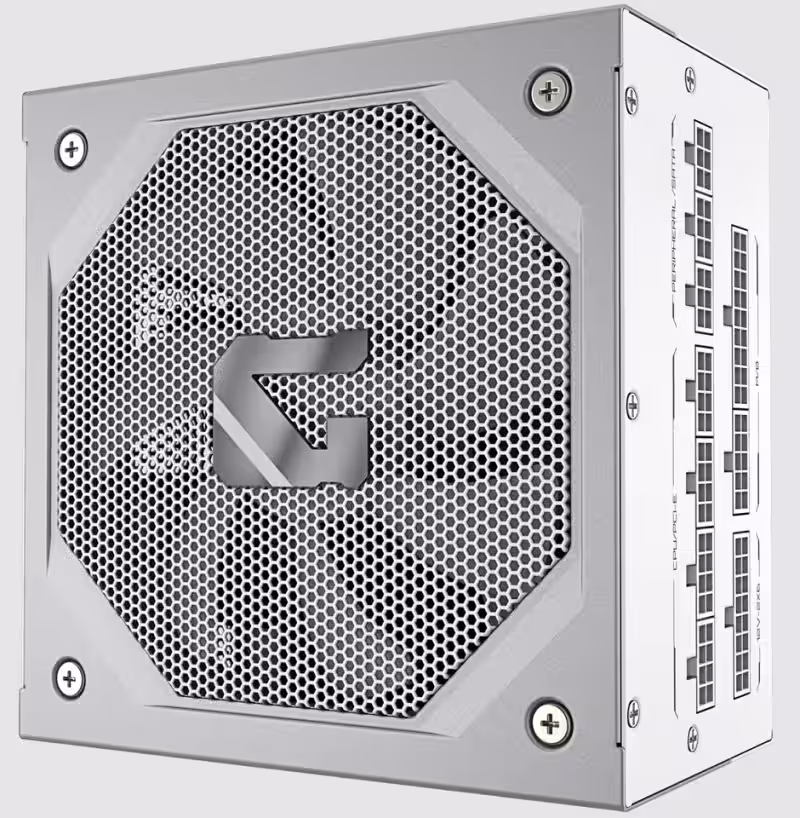

Gigabyte has introduced a new Gaming power supply line with T-Guard protection for 12V-2×6, aiming to answer one of the messier questions around modern high-end PCs: how do you keep a GPU connector from turning into a very expensive science experiment? The company says T-Guard can detect overheating, cut power to the graphics card, and keep the rest of the machine alive long enough to save work before shutdown.
That last part is the smart bit. GPU power faults are rarely graceful, and anyone running a bulky graphics card knows the problem is not just performance but cable seating, heat, and human error. Gigabyte is clearly betting that ”prevention plus a warning” sells better than the usual shrug-and-pray approach.
How T-Guard works on 12V-2×6
Gigabyte describes T-Guard as a three-layer defense. The 12V-2×6 connector uses high-precision thermistors for temperature monitoring, built-in sensors watch the connector in real time, and the system can automatically reduce power going to the GPU if it detects dangerous heat from a loose cable or abnormal load.
The company says that if temperatures get too high, the power supply does not just shut everything off. Other system components keep running, which should help avoid abrupt data loss on drives or SSDs. If the processor has integrated graphics, users can switch to that output long enough to save files and inspect the problem without reboot chaos.
Gaming PSUs: power ratings and efficiency claims
The Gaming series is launching with 750W, 850W, and 1000W models, all aligned with ATX 3.1 and PCIe 5.1. Gigabyte says the units have earned a Cybenetics ETA Platinum rating, an 80 Plus Gold label, and Cybenetics LAMBDA A+ certification for low noise, with an average sound level below 20 dBA.
That specification mix puts these units squarely in the mainstream premium bracket, where buyers want enough headroom for power-hungry GPUs without paying for overkill. The broader market has been pushing connector safety harder ever since 12VHPWR and its successors became the default talking point for high-end cards, so Gigabyte is not exactly being subtle about where it wants to compete.
- Power options: 750W, 850W, 1000W
- Standards: ATX 3.1, PCIe 5.1
- Cooling: 135-mm fan with a hydrodynamic bearing
- Quiet mode: HybridCool fan stop at low load
- Colors: white ”GM Ice” and black ”GM”
- Warranty: 10 years
What Gigabyte is actually selling
Gigabyte is also leaning on the less glamorous parts of a power supply spec sheet: Japanese capacitors, a 135-mm fan, and a HybridCool mode that stops the fan at low loads. None of that is flashy, but it is exactly the sort of detail buyers check after hearing one too many horror stories about coil whine, heat, or warranty denial.
The company’s two-tone 12V-2×6 connector is a tiny but useful touch. Bright color marking is a simple way to reduce half-seated plugs, which may be the most preventable mistake in the entire high-power GPU era. Gigabyte seems to understand that better engineering sometimes looks suspiciously like better labeling.
The open question is whether T-Guard becomes a meaningful differentiator or just another logo on a box. If Gigabyte can pair this protection with broad availability and competitive pricing, it may have found a neat way to stand out in a crowded PSU market. If not, it will join the long list of good ideas that mostly live on product pages.
